Polinovel is aim to bring you the safest lithium battery products.
We insist on quality first, always keep serious attitude on detail and caring your using experience.

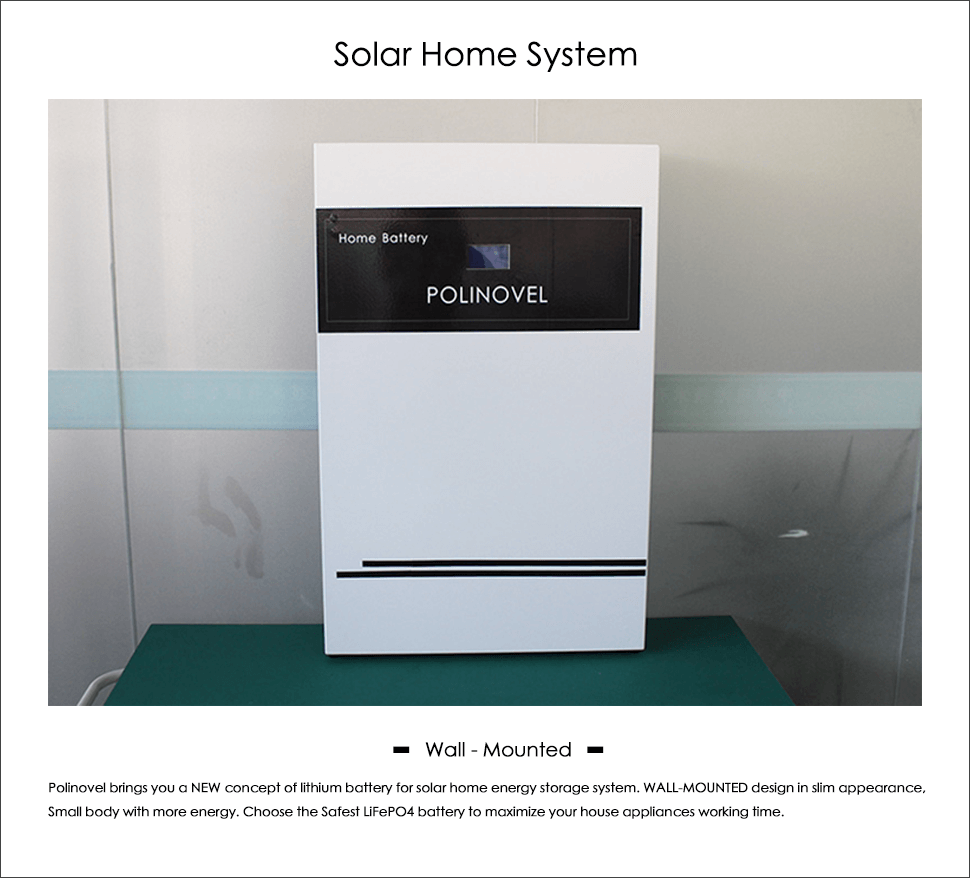

V+ Series

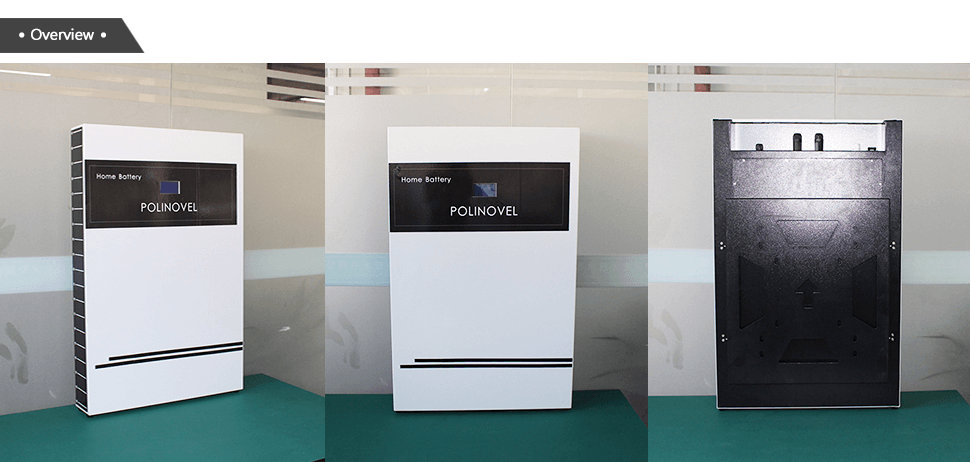

• Side View • • Front View • • Back View •
Item | Model |
Solar Home Battery | V+3000 | V+5000 | V+7000 |
Nominal Capacity | 66Ah | 99Ah | 148.5Ah |
Nominal Voltage | 51.2V | 51.2V | 51.2V |
Voltage Range | 43.2-57.6V | 43.2-57.6V | 43.2-57.6V |
Continous Charge & Discharge Current | 100A | 100A | 100A |
Max. Pulse Current (for less than 5 sec) | 200A | 200A | 200A |
Dimension | 740*600*122mm | 938.5*605*122mm | 1235*605*122mm |
Weight | 63kg | 85kg | 110kg |
Battery Type | Lithium Iron Phosphate (LiFePO4) |
Charge Temperature | 0-60℃ |
Discharge Temperature | -20-60℃ |
Storage Temperature | -20-45℃ |
BMS Protection | Over-current, over-voltage, under-voltage, short circuit, over temperature |
Communication Interface | RS232, RS485 (optional) |
WIFI Monitoring | Coming soon... |
Installation Way | Wall-mounted |
